PD44

日期:2015-12-24 20:36:40 人气:1382
PD44

拥有专利的计量、混合和分配阀

适用于微量双组份材料

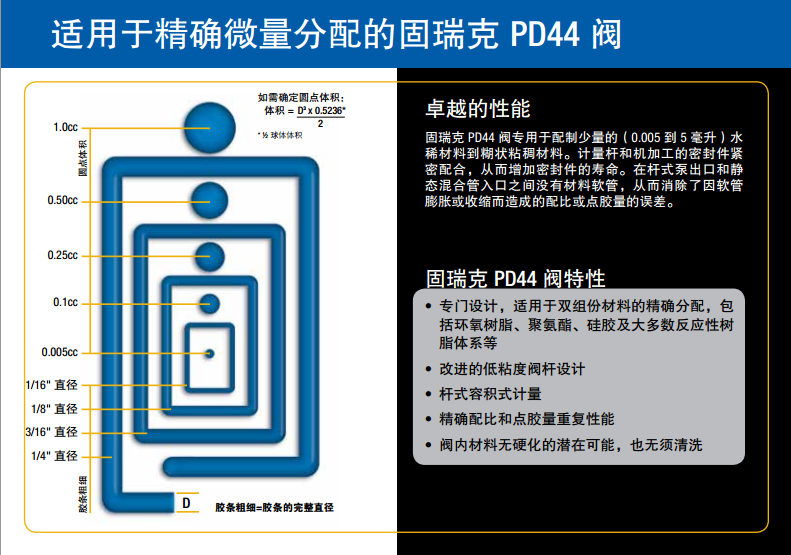

固瑞克 PD44 阀专用于配制少量的(0.005 到 5 毫升)水稀材料到糊状粘稠材料。计量杆和机加工的密封件紧密配合,从而增加密封件的寿命。

PD44
PD44
规格
PD44
Maximum Ambient Temperature
43°C
Maximum Operating Temperature
65°C
Maximum Outlet Fluid Working Pressure
138 bar, 14 MPa
Maximum Air Working Pressure
7 bar, 0.7 MPa
Maximum Material Inlet Pressure
Metal Sleeves
83 bar, 8 MPa
Plastic Sleeves
28 bar, 2.8 MPa
Supplied Air Requirements
1–3 cfm at 550 kPa, 5.5 bar - 7 bar, 0.7 MPa
Ratio Range (depending on metering rods selected)
1:1 to 25:1
Shot Size Range (depending on metering rods selected)
0.005 cc to 5.0 cc
Maximum Cycle Rate per minute (application dependent)
Micrometer PD44
60 cycles
LRT PD44
60 cycles
Motor Driven PD44 (with standard Graco motor)
15 cycles
Dimensions (H x L x W), height to end of material inlet
Micrometer PD44
445 x 105 x 192 mm
LRT PD44
368 x 105 x 192 mm
Motor Driven PD44 (with Graco motor)
445 x 105 x 192 mm
Mixer
102 - 375 mm
Smallest Graco-supplied Feed System Assemblies
572 x 254 x 102 mm
Largest Graco-supplied Feed System Assemblies
1524 x 711 x 483 mm
Weight
PD44 Metering Valve
6.35–6.80 kg
Valve stand only
3.6 kg
Feed Systems
1.8–79.4 kg
Sound Data, Sound data measured per standard ISO 11202 (1993) & ISO3746 (1995).
Sound Power Level
76.5 dBA
Maximum Sound Pressure
92.8 dB
Wetted Parts
PD44 Metering Valve
Hardened steel, 303/304, 404, UHMWPE, Tungsten, carbide, fluoroelastomer, EPDM, PTFE
Graco-supplied Feed System Hoses and Fittings
Mild steel, 303/304, PTFE, buna, polyethylene, polypropylene
Graco-supplied Tanks
Polyethylene, 303/304, mild steel
































































材料
PD44
应用
PD44

行业
PD44
